VM10Ui

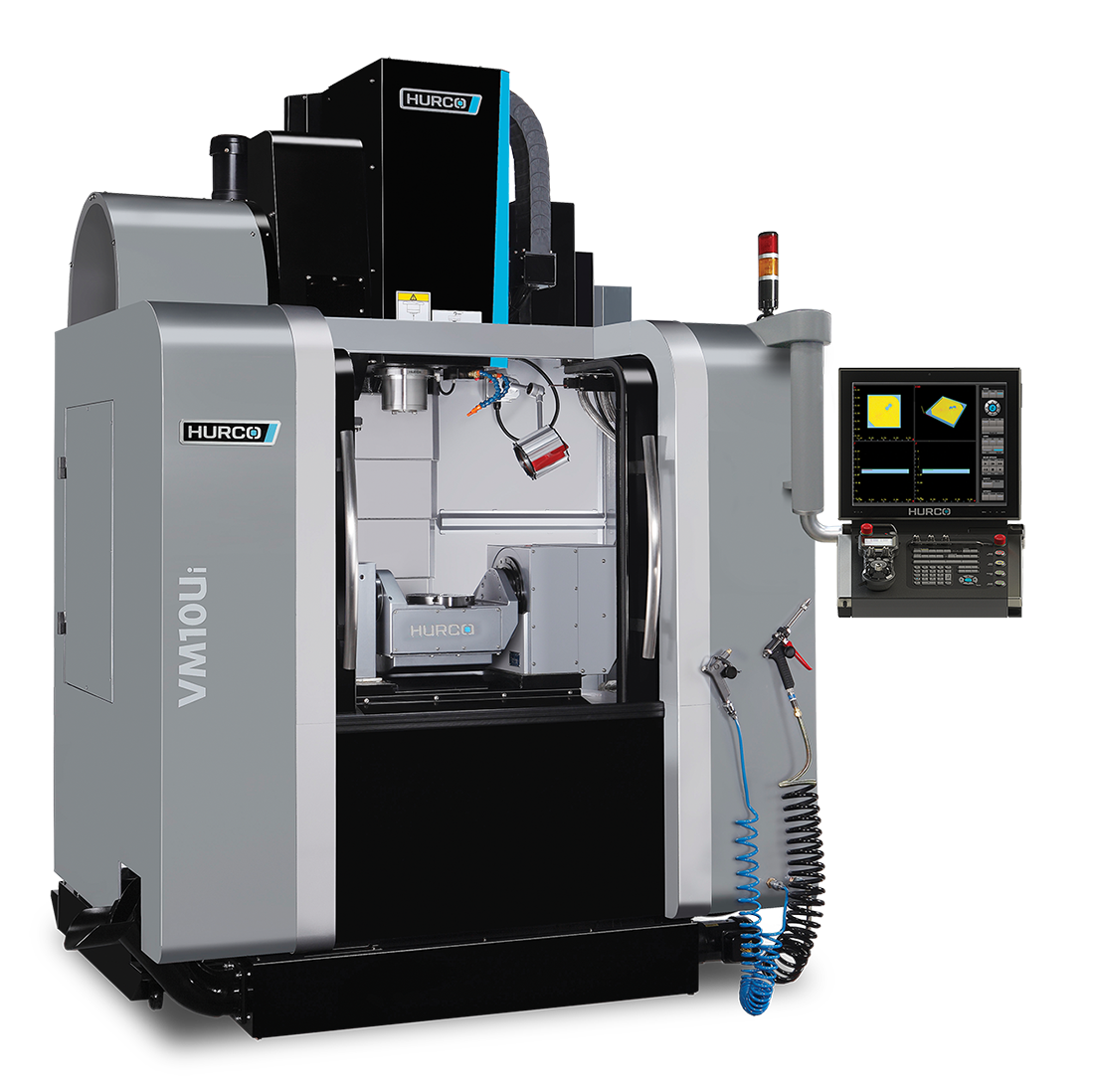

5-Axis Integrated Trunnion Machining Center

The efficient design of the Hurco 5-axis trunnion table machining centers is a key benefit to consider—we use an integrated trunnion table at Hurco instead of simply sticking a trunnion table on a 3-axis machining center and passing it off as a 5-axis machine. The integrated trunnion table design provides more clearance in Z compared to other brands.

Request Price Scroll to Machine Specifications Find Your Local Distributor
VM10Ui - 5-Axis Integrated Trunnion Machining Center - Hurco

VM10Ui Machine Specifications

Travels & Capacity

X, Y, Z Axis Travel		21.02 x 16.02 x 19.02 in (533 x 406 x 483 mm)
A-Axis Travel+30°/-110°
C-Axis Travel360°
Spindle Nose to Table Min/ Max1.4 / 20.4 in (36 / 519 mm)
Table Diameter7.8 in (198 mm)
Max. Weight on Table330 lbs (150 kg)
T-Slot Size6 x .39 in (6 x 10 mm)

Spindle

Max. Spindle Speed		12,000 rpm
Spindle power (peak)10 hp (7.5 kW)
Spindle torque (peak)35.2 ft lbs @ 1,500 rpm (47.7 Nm @ 1,500 rpm)

Tool Changer

Tool Type		CAT 40 / BIG PLUS® (CAT, BT, DIN 40)
Number Of Tools24
Max Tool Diameter 3.1 in (79 mm)
Max Tool Length 9.8 in (250 mm)
Max Tool Weight15.4 lb (7 kg)

Feedrates

Rapid Traverse X,Y,Z Axis		1,102 in/min (28 m/min)
Max. Programmable Feedrate1,102 in/min (28 m/min)
Rapid Traverse A, C Axis25 rpm

Size

Max. Operating Floor Space		128.5 x 133 in (3,263.9 x 3,378.2 mm)
Machine Height106.9 in (2,715.3 mm)
Machine Weight7,392 lbs (3,360 kg)

Electrical

Power rating / full load KVA		14 KVA
